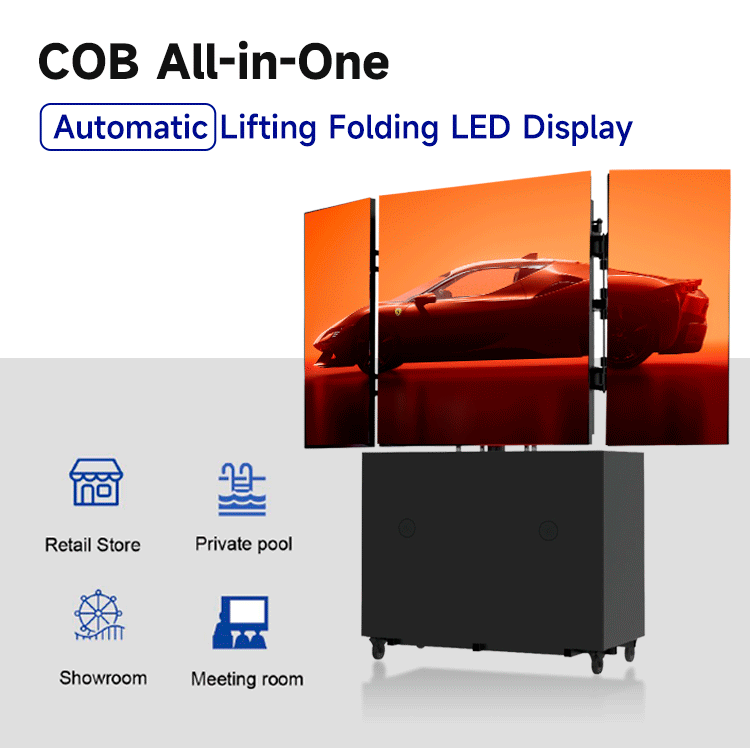

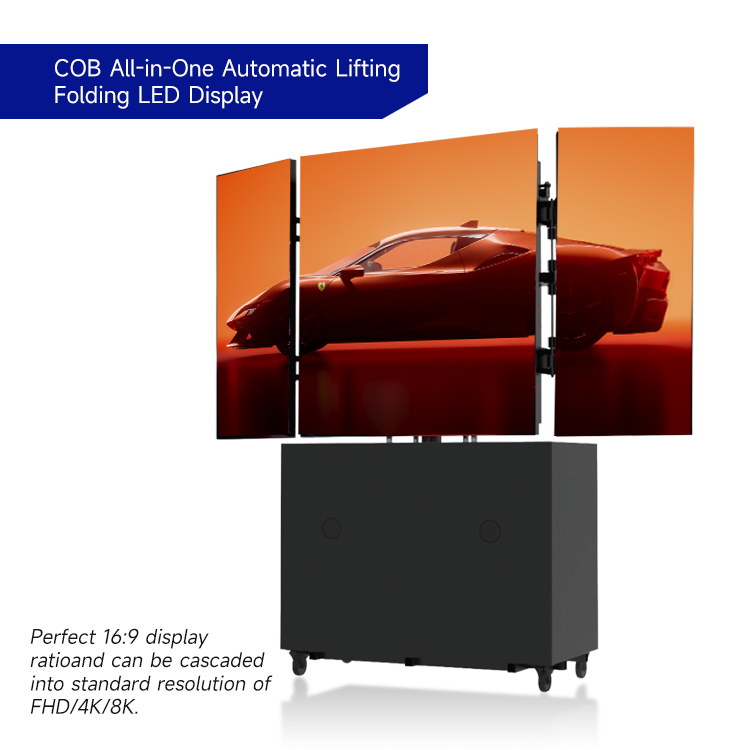

COB All-in-One Automatic Lifting Folding LED Display

COB All-in-One Automatic Lifting Folding LED Display

Pixel pitch:0.6/1.25/1.56mm
Display size:2400X1350mm
Cabinet size:1470x1664x520mm
Brightness:600/1000nit
Refresh Frequency:3840HZ

Main Feature

High refresh rate
HDR technology
Rapid assembly
Open automatically
Quick pre-maintenance
Crash-proof & waterproof

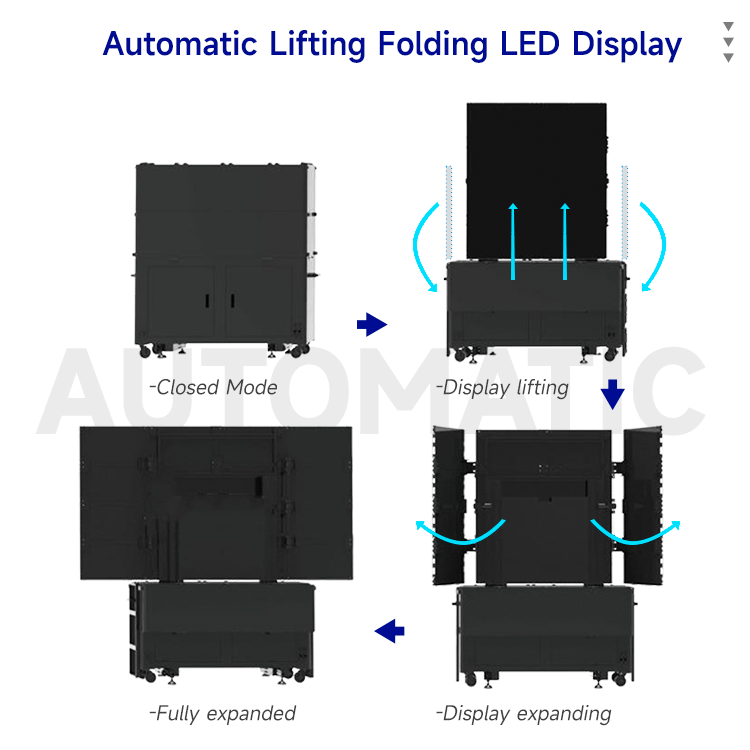

One key automatic lift folding

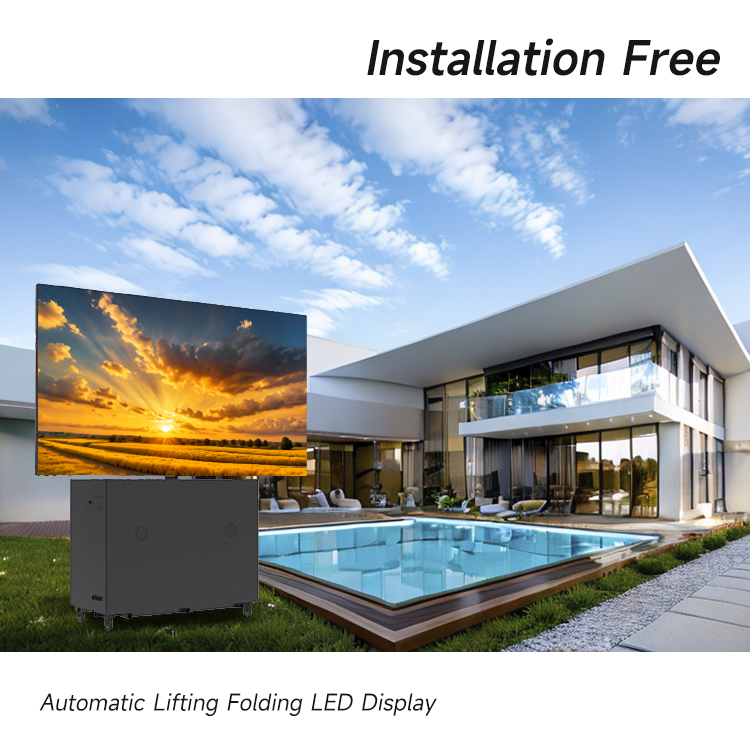

The all-in-one machine automatically lifts and expands, without complicated installation;

Small box, light and convenient

The pulley is installed at the bottom, so that the movement becomes arbitrary;

Large screen display, built-in audio

Audio and video synchronous control, easy operation;

Common shade design, effective energy saving.

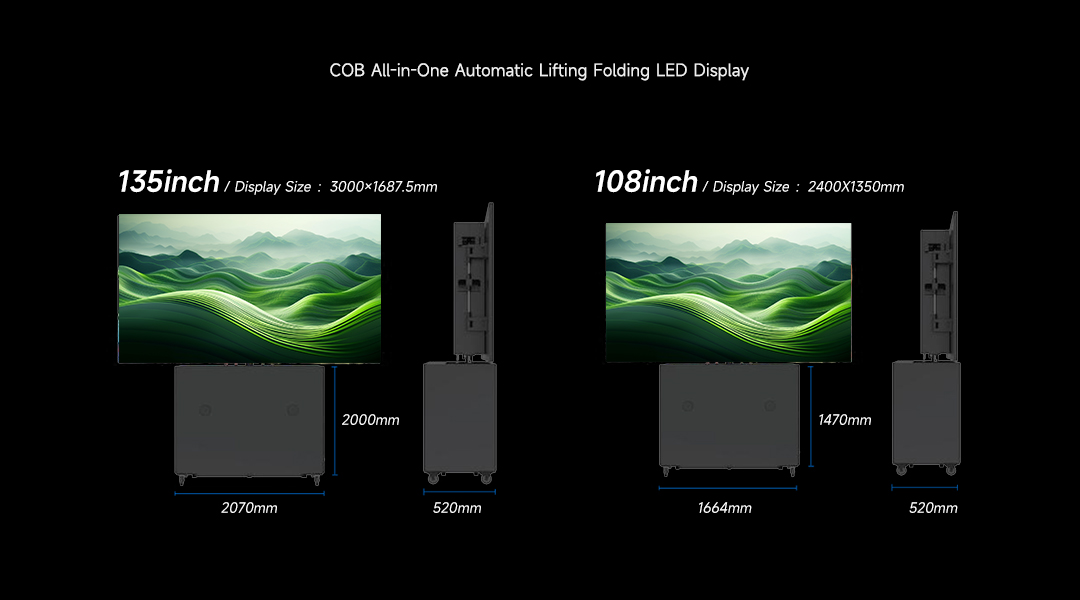

Coral dimension

参数

  • Product model
  • Pixel Pitch
  • LED configuration
  • Display size(mm)
  • Overall size(mm)
  • Weight(kg)
  • Resolution(WxH)
  • Refresh(Hz)
  • Brightness
  • Gray scale
  • color temp
  • Contrast ratio
  • Max.power consumption
  • Avg.power consumption
  • Working voltage
  • Lifetime
  • Operation temp
  • Storage temp
  • Operation humidity
  • 108lnch
  • P1.25
  • COB
  • 2400x1350
  • 1470x1664x520
  • 380
  • 1920x1080
  • 3840Hz
  • Standard 600nits /1000nits optional
  • 13-14bits
  • 9300K
  • 10000:1
  • ≤1200
  • ≤400
  • AC:110V-240V 50-60Hz
  • 100000
  • -10°C~40°C
  • -25°C~60°C
  • 10%-80%no condensation
  • 135lnch
  • P1.56
  • COB
  • 3000x1687.5
  • 2070x2000x520
  • 520
  • 1920x1080
  • 3840Hz
  • Standard 600nits /1000nits optional
  • 13-14bits
  • 9300K
  • 10000:1
  • ≤1750
  • ≤580
  • AC:110V-240V 50-60Hz
  • 100000
  • -10°C~40°C
  • -25°C~60°C
  • 10%-80%no condensation
