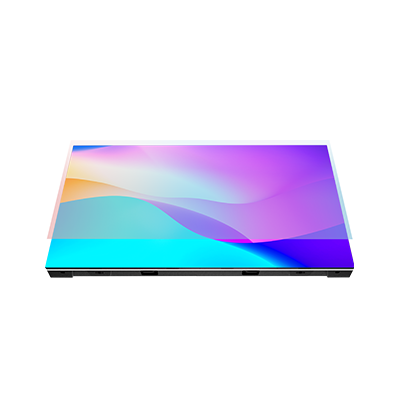

Full Flip-Chip COB
Full Flip-Chip COB
Pixel pitch：0.7/0.9/1.25mm
Module size：150x168.75mm

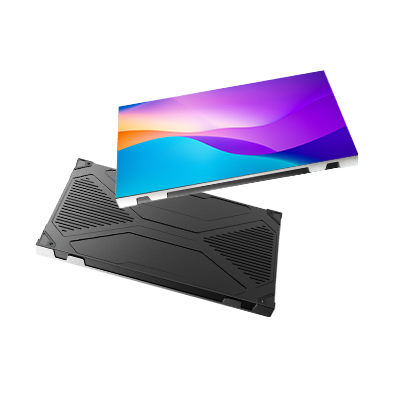

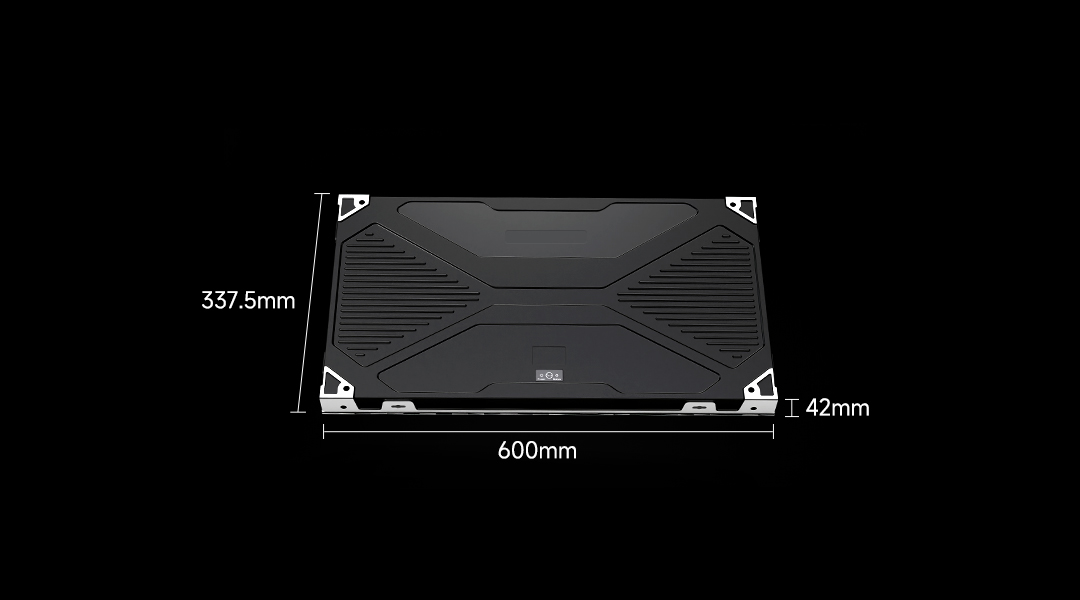

Cabinet size：600x337.5x42mm
Brightness：600~3000nit
Refresh Frequency：≥3840HZ
Main feature
Process
architecture
expression
ink consistency

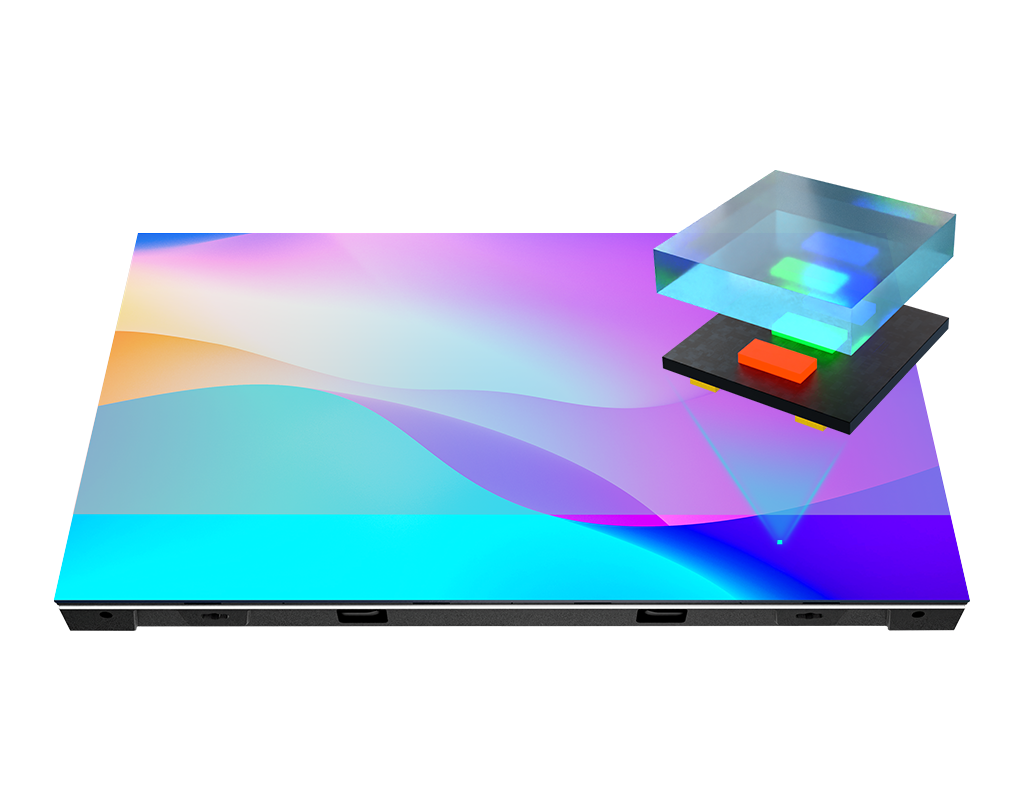

Micro Led Flip Chip
Common Cathode
Ultra Energy-saving Drive Ic
XGL OPTO Semiconductor also adopts a common
cathode architecture,which can accurately allocate
voltage and current to red,green,and blue light chips,
thereby significantly reducing power consumption and
reducing internal resistance,resulting in lower screen
temperature

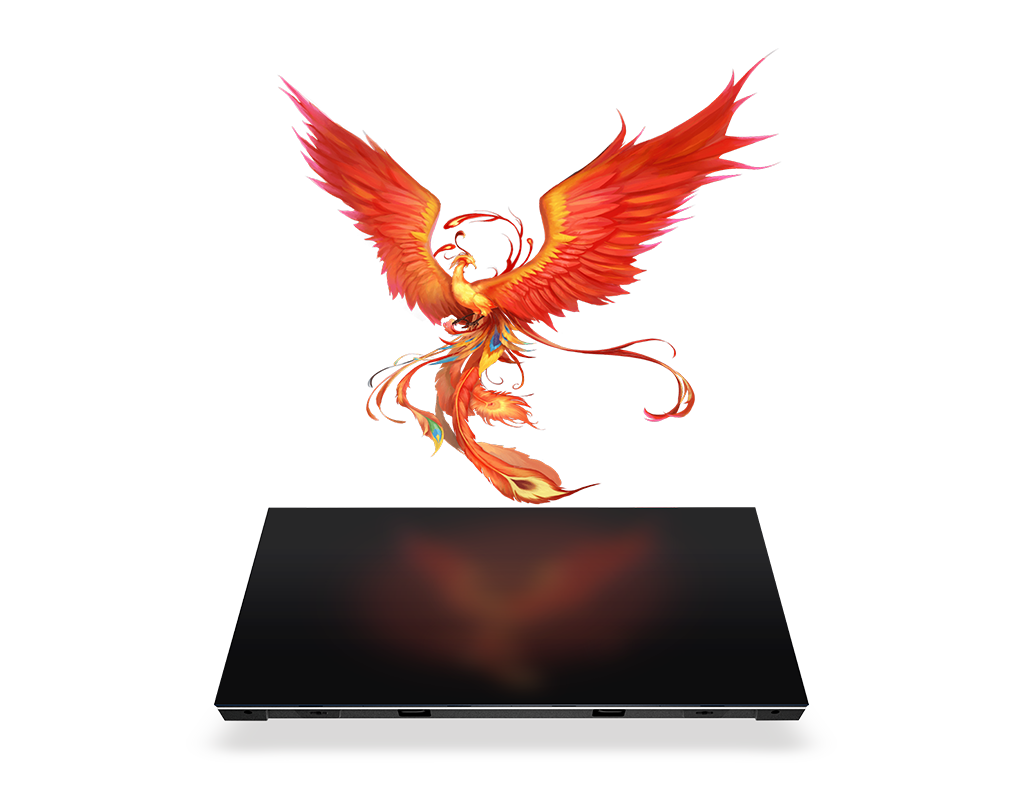

Improve Ink Consistency
& Enhance Picture Contrast
Equipped with the new generation of ink technology
independently developed by XinGuanglian,it greatly
improves the "black"performance of the display,and the
unique new material improves the consistency of the ink
color,so that the picture reaches 1000000:1 high contrast

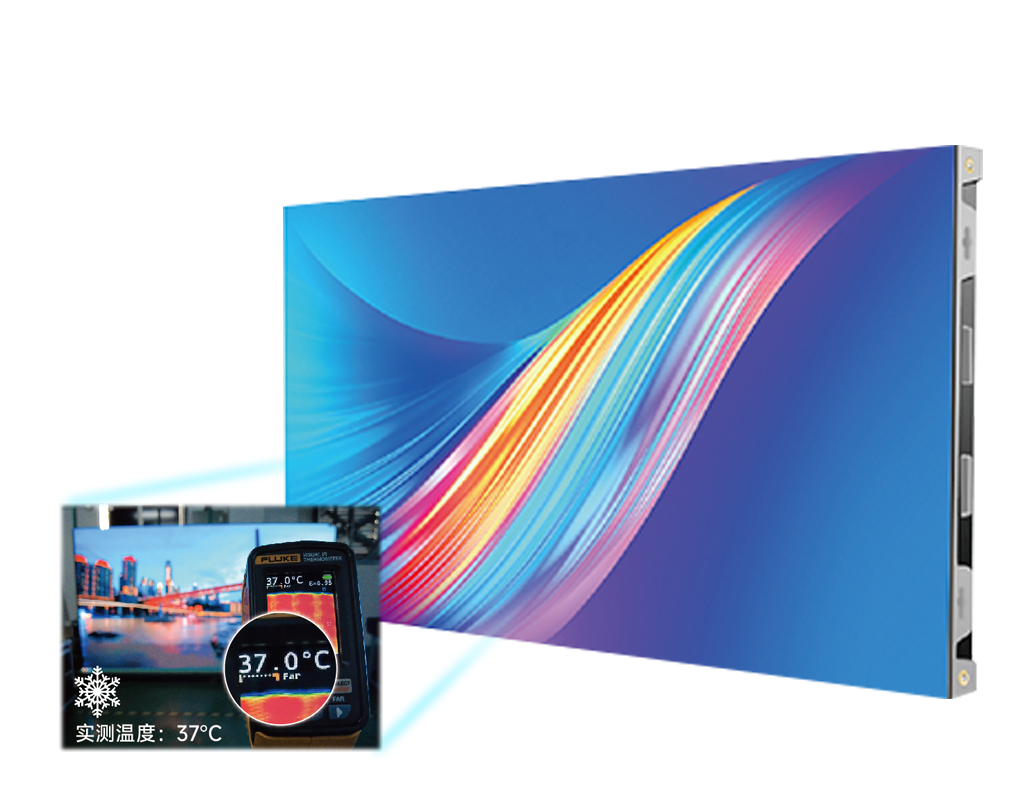

Low Consumption Cold Screen
XGL Semiconductor also adopts a common cathode architec-
ture,which can accurately distribute voltage and current to red
and blue light chips,thereby significantly reducing power
consumption and reducing on-resistance,thereby bringing
about a lower screen temperature.
参数
- Title
- LED Type
- Pixel Pitch (mm)
- Panel Size (mm)
- Panel Resolution
- Panel Weight (kg)
- Module Size（mm)
- Module Resolution (pixels)
- Brightness (cd/㎡）
- Color Temperature (K)
- Refresh Frequency (Hz）
- Viewing Angle(H/V)
- Contrast Ratio
- Max power consumption（W/m²)
- Avg power consumption（W/m²)
- Frame Change Frequently (Hz)
- Signal Color Processing Bits
- Pixel Density
- Continuous working time
- Voltage
- Operating Temperature Range
- Operating Humidity Range
- Installation method
- Lifetime (h)
- XC 0.93
- Full Flip-Chip COB
- 0.9375
- 600 ×337.5×42mm
- 640x360
- 6±0.5Kg/panel
- 150×168.75
- 160X180
- 600
- 3000-13000K 可调
- 3840
- 140°/140°
- 1000000: 1
- 280
- 95
- 50/60
- ≥13bit
- 1137778 dots/m²
- ≥7*24hrs
- 100-240V
- -20℃ 50℃
- 10%RH 95%RH
- 座装、吊装、壁装
- 100000 hours
- XC 1.25
- Full Flip-Chip COB
- 1.25
- 600 ×337.5×42mm
- 480x270
- 6±0.5Kg/panel
- 150×168.75
- 120X135
- 600
- 3000-13000K 可调
- 3840
- 140°/140°
- 1000000: 1
- 270
- 90
- 50/60
- ≥13bit
- 640000 dots/m²
- ≥7*24hrs
- 100-240V
- -20℃ 50℃
- 10%RH 95%RH
- 座装、吊装、壁装
- 100000 hours
- XC 1.56
- Full Flip-Chip COB
- 1.5625
- 600×337.5×42mm
- 384x216
- 6±0.5Kg/panel
- 150×168.75
- 96x108
- 600
- 3000-13000K 可调
- ≥3840
- 120°/120°
- 1000000:1
- 210
- 70
- 50/60
- ≥13bit
- 409600dots/m²
- ≥7*24hrs
- 100-240V
- -20℃ 50℃
- 10%RH 95%RH
- 座装、吊装、壁装
- 100000 hours
- Xi0.7
- Full Flip-Chip COB
- 0.78125
- 600×337.5×35mm
- 768x432
- 4.6±0.5Kg/panel
- 150×168.75
- 192X216
- 600/1200
- 3000-13000K 可调
- ≥3840
- 140°/140°
- 1000000:1
- 200(1200nit:285W/m²)
- 65(1200nit:95W/m²)
- 50/60
- ≥16bit
- 1638400dots/m²
- ≥7*24hrs
- 100-240V
- -20℃ 50℃
- 10%RH 95%RH
- 座装、吊装、壁装
- 100000 hours
- Xi0.9
- Full Flip-Chip COB
- 0.9375
- 600×337.5×42mm
- 640x360
- 6±0.5Kg/panel
- 150×168.75
- 160X180
- 600/1200
- 3000-13000K 可调
- ≥3840
- 140°/140°
- 1000000:1
- 175(1200nit:265W/m²)
- 57(1200nit:85W/m²)
- 50/60
- ≥16bit
- 1137778dots/m²
- ≥7*24hrs
- 100-240V
- -20℃ 50℃
- 10%RH 95%RH
- 座装、吊装、壁装
- 100000 hours
- Xi1.25
- Full Flip-Chip COB
- 1.25
- 600×337.5×42mm
- 480x270
- 6±0.5Kg/panel
- 150×168.75
- 120X135
- 600/1200
- 3000-13000K 可调
- ≥3840
- 140°/140°
- 1000000:1
- 165(1200nit:260W/m²)
- 50(1200nit::85W/m²)
- 50/60
- ≥166it
- 640000 dots/m²
- ≥7*24hrs
- 100-240V
- -20℃ 50℃
- 10%RH 95%RH
- 座装、吊装、壁装
- 100000 hours
