LT series
LT series
Pixel pitch：1.25/1.56/1.9/2.5/2.6/2.9/3.9mm
Module size：250x250mm

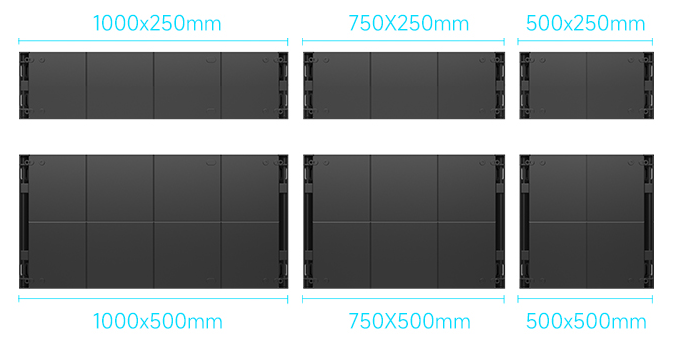

Cabinet size：250x500/250x750/250x1000mm
500x500/500x750/500x1000mm
Brightness：600~1200nit
Refresh Frequency：≥3840HZ
Main feature

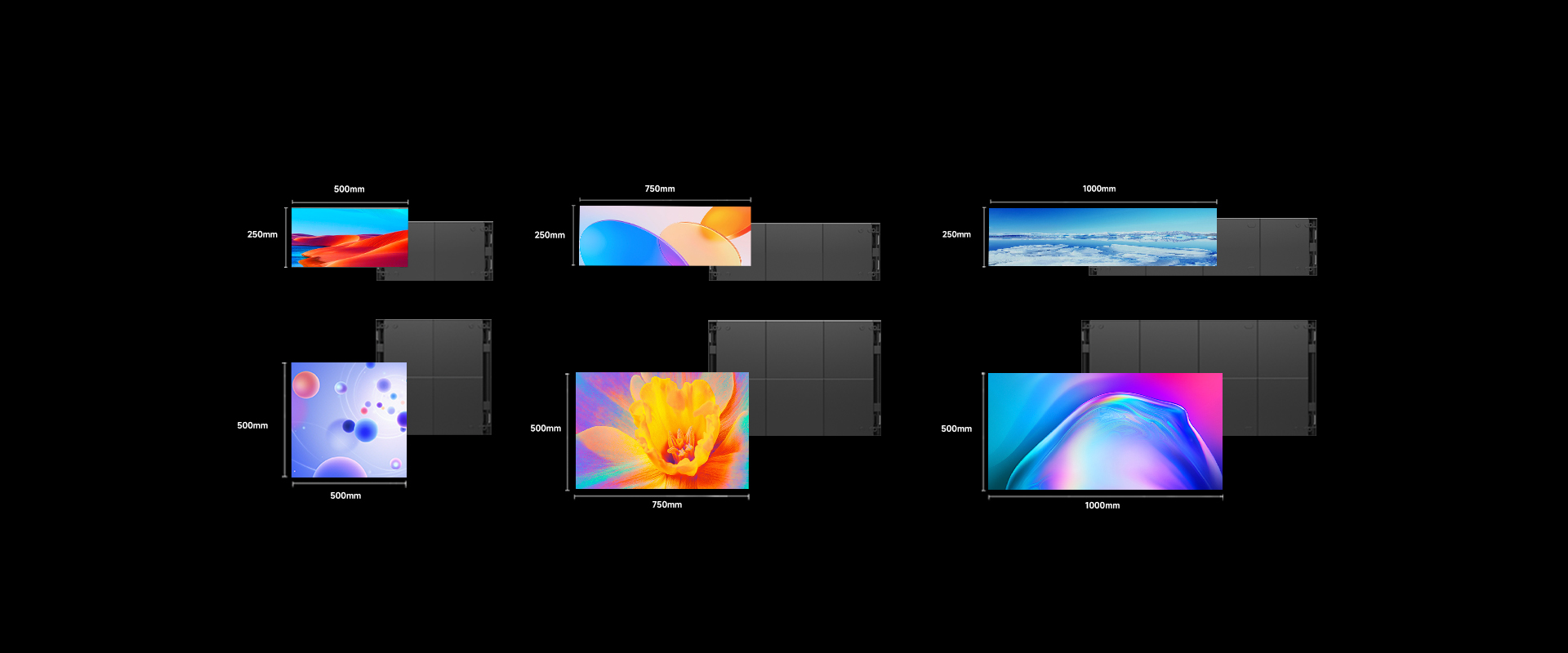

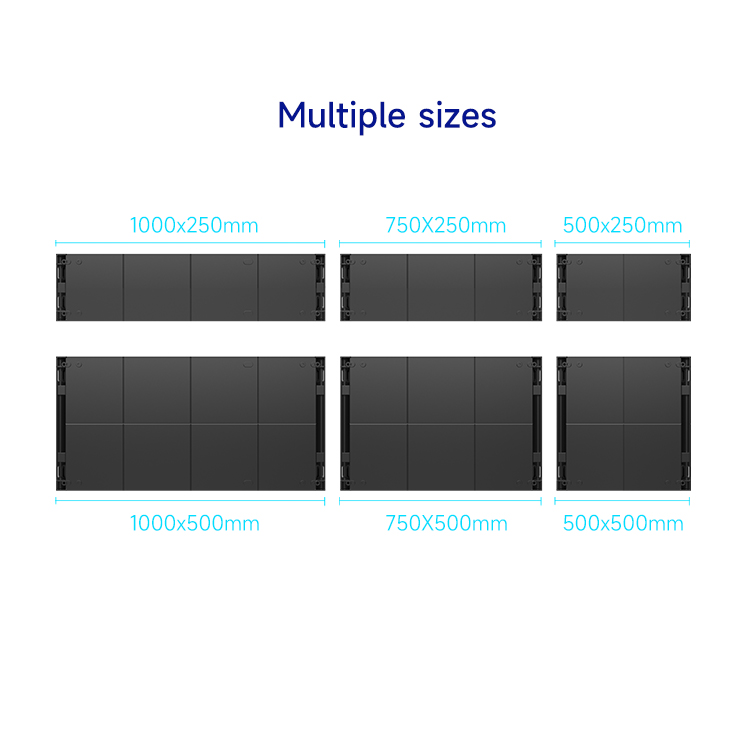

Multiple size combinations
The box adopts a modular design and supports point-to-point display in 2K, 4K and 8K standard resolutions

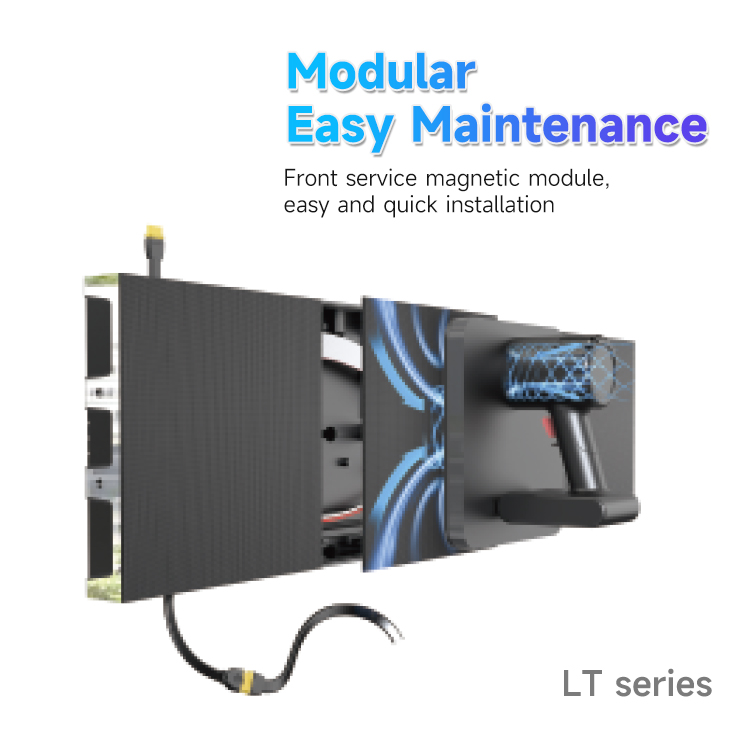

Private model design, fully pre-installed and pre-maintained, hard link, compatible with GOB;

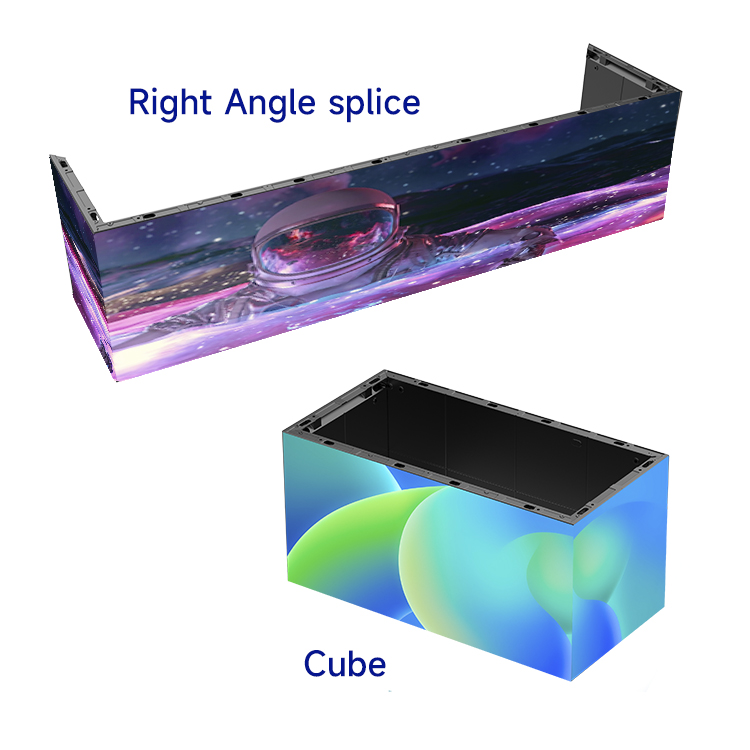

Creative splicing, freely combinable
Equipped with dual power supply and dual signal redundancy backup technology, the system operates stably and reliably.
Concealed wiring between the boxes eliminates the need for external line connections, making the overall design safer and neater.;

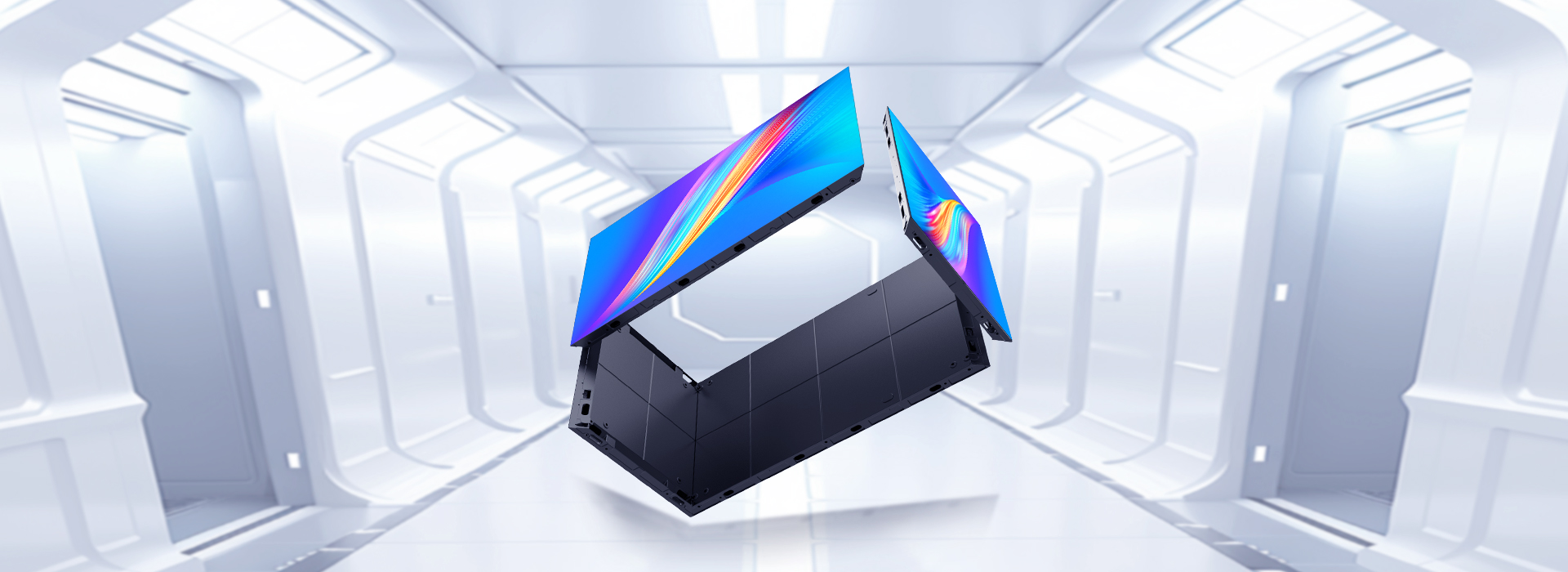

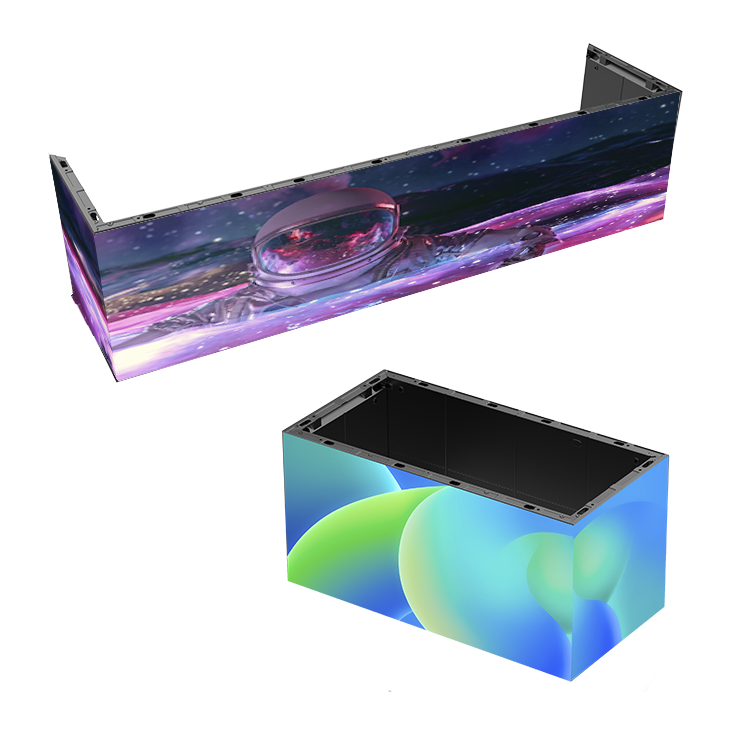

Creative splicing, freely combinable

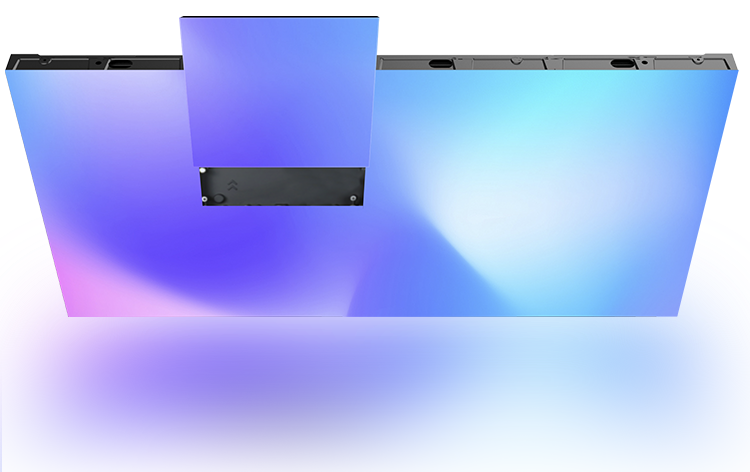

The display unit is modularly designed, and boxes of different sizes can be freely assembled together.

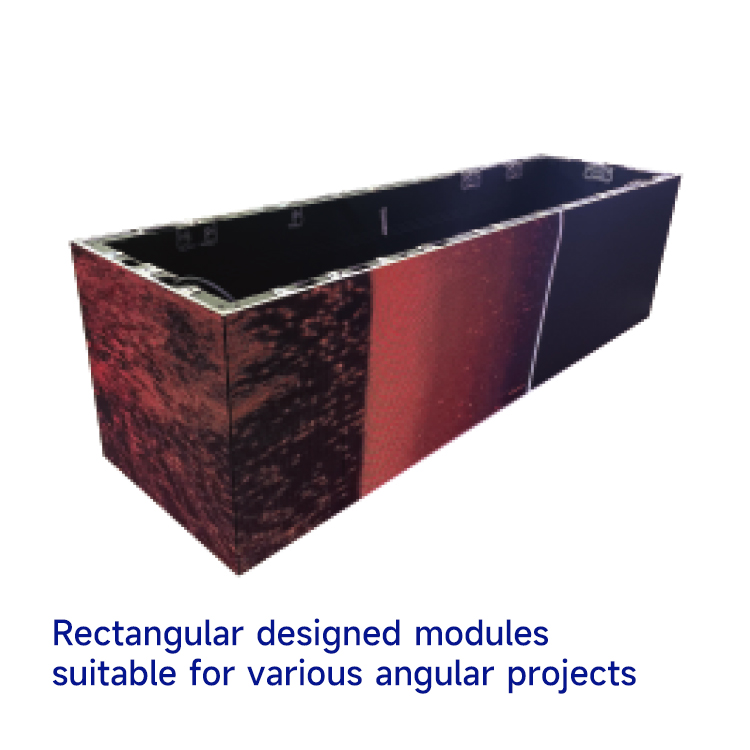

It can be designed with beveled edges, suitable for application scenarios such as stages and creative shapes.
Value
- Title
- LED Type
- Module Resolution
- Driving Mode
- Module Pixels
- Module Size
- (1000mm x 500mm)(px)
- (750mm x 500mm)(px)
- (500mm x 500mm)(px)
- (1000mm x 250mm)(px)
- (750mm x 250mm)(px)
- (500mm x 250mm)(px)
- Pixel Density
- Best Viewing Distance
- Brightness
- IP Grade
- Refresh Rate
- Gray Scale
- Viewing Angle
- Maximum Power Consumption
- Average Power Consumption
- Cabinet Weight
- 1.25
- SMD1010(GOB)
- 200dots x200dots
- 1/50scan
- 4,0000dots
- 250x250
- 800x400
- 600x400
- 400X400
- 800x200
- 600x200
- 400x200
- 640,000dots/m²
- ≥1.25m
- 600nits
- IP43
- 3,840Hz
- 14bits ~22bits
- H:110°/V:110°
- 500W/m²
- 160W/m²
- 2.8~10.2kg
- 1.56
- SMD1212(GOB)
- 160dots x160dots
- 1/40scan
- 25,600dots
- 250x250
- 640x320
- 480x320
- 320×320
- 640x160
- 480x160
- 320x160
- 409600dots/m²
- ≥1.56m
- 600nits
- IP43
- 3,840Hz
- 14bits ~22bits
- H:110°/V:110°
- 500W/m²
- 160W/m²
- 2.8~10.2kg
- 1.95
- SMD1515
- 128dots x128dots
- 1/32scan
- 16,384dots
- 250x250
- 512X256
- 384×256
- 256X256
- 512x128
- 384x128
- 256x128
- 262141dots/m²
- ≥1.9m
- 800nits
- IP43
- 3,840Hz
- 14bits ~22bits
- H:110°/V:110°
- 500W/m²
- 160W/m²
- 2.8~10.2kg
- 2.5
- SMD2020
- 100dots x100dots
- 1/25scan
- 10,000dots
- 250x250
- 400x200
- 300x200
- 200×200
- 400z100
- 300x100
- 200x100
- 160000dots/m²
- ≥2.6m
- 800nits
- IP43
- 3,840Hz
- 14bits ~22bits
- H:110°/V:110°
- 450W/m²
- 150W/m²
- 2.8~10.2kg
- 2.6
- SMD1515
- 96dots x 96dots
- 1/32scan
- 9,216dots
- 250x250
- 384x192
- 288x192
- 192x192
- 384x96
- 288x96
- 192x96
- 147456dots/m²
- ≥2.6m
- 800nits
- IP43
- 3,840Hz
- 14bits ~22bits
- H:110°/V:110°
- 350W/m²
- 115W/m²
- 2.8~10.2kg
- 2.97
- SMD2020
- 84dots x 84dots
- 1/21scan
- 7,056dots
- 250x250
- 336x168
- 252x168
- 168x168
- 336×84
- 252×84
- 168x84
- 112896dots/m²
- ≥2.9m
- 800nits
- IP43
- 3,840Hz
- 14bits ~22bits
- H:110°/V:110°
- 350W/m²
- 115W/m²
- 2.8~10.2kg
- 3.91
- SMD2020
- 64dots x 64dots
- 1/16scan
- 4,096dots
- 250x250
- 256x128
- 192x128
- 128x128
- 256x64
- 192x64
- 12x64
- 65536dots/m²
- ≥3.9m
- 800nits
- IP43
- 3,840Hz
- 14bits ~22bits
- H:110°/V:110°
- 300W/m²
- 100W/m²
- 2.8~10.2kg
